Tower® Jigs

SKU:
12962
|
UPC:
10847129628
$97.79
(1 review) Write a Review

Fletch three vanes or feathers at once with Bohning's Tower® Jig! This revolutionary fletching jig provides exceptional adhesion force that is evenly distributed along the base of the vane or feather. You will get consistent angles and perfect 120° spacing. The durable, engineering-grade composite material can be cleaned with acetone to remove adhesive residue. The Tower® Jig is great for single vane repairs too! Available in multiple configurations (see reference chart) for different arrow sizes and fletching angles, from straight fletch up to a 3° right or left helical. All configurations include a base, three sizes of pressure rings to accommodate all arrow diameters, a set of 3 Spacer Plates for an extra .025" (6mm) of space between the nock and vane, and Clamp Release Tape.

  • COMPLETE: all the available Tower Jig components in one purchase, great for clubs and families.
  • TRIPLE: Arms - Solid Gray, Black, & Red. Center Posts - F Nock, A Nock, HE, Standard, Swedged Nock, Pin Nock.
  • HELIX: Arms - Black, Purple. Center Posts - F Nock, A Nock, HE, Standard, Crossbow, Pin Nock.
  • CROSSBOW: Arms - Black, Red. Center Post - Crossbow, Swedged nock.
  • FEATHER: Arms - Blue, Green (arms have wider slots to accommodate feathers). Center Posts - F Nock, Standard, Swedged
  • MYLAR: Arms - Gray with red clip (accommodates Spin Wing type vanes). Center Posts - F Nock, Standard, Pin Nock.
Color of Arms Fletching Type Offset/Helical Max. length of fletching
Gray (solid) Plastic vane straight 4" (101mm)
Black Plastic vane 3° Right 3" (76mm)

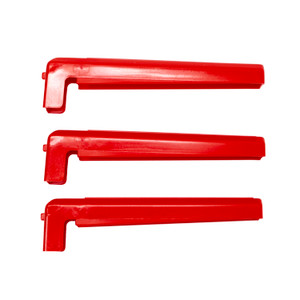

Red Plastic vane 1° Right 4" (101mm)
Purple Plastic vane 3° Left 3" (76mm)
Orange Plastic vane 1° Left 4" (101mm)
Blue Feather 2° Right 5" (127mm)
Green Feather 2° Left 5" (127mm)
Gray w/ red clip Mylar vane straight 3.75" (95mm)



Center Post Marking Corresponding Arrow Size
F Nock .166" (4.23mm) ID
A Nock .204" (5.18mm) ID
HE .231" (5.87mm) ID
Standard Carbon .246" (6.25mm) ID
Crossbow  Bolt Bolts up to .35" (8.89mm) OD
Pin Nock pin bushing
(unmarked) Swedged arrows with nocks glued on

Proudly manufactured at the Bohning Factory in Lake City, Michigan, United States.

Reviews

  • 5
    Crossbow Bolt Fletching

    Posted by Harry "Skip" Burks on 27th Dec 2022

    The Bohning Tower Jig for crossbows was easy to set up and easy to use. It was made easy the help of videos that Bohning makes available to Customers. Just cleaned and refletched 10 TenPoint bolts/arrows with ease. Thankyou!
